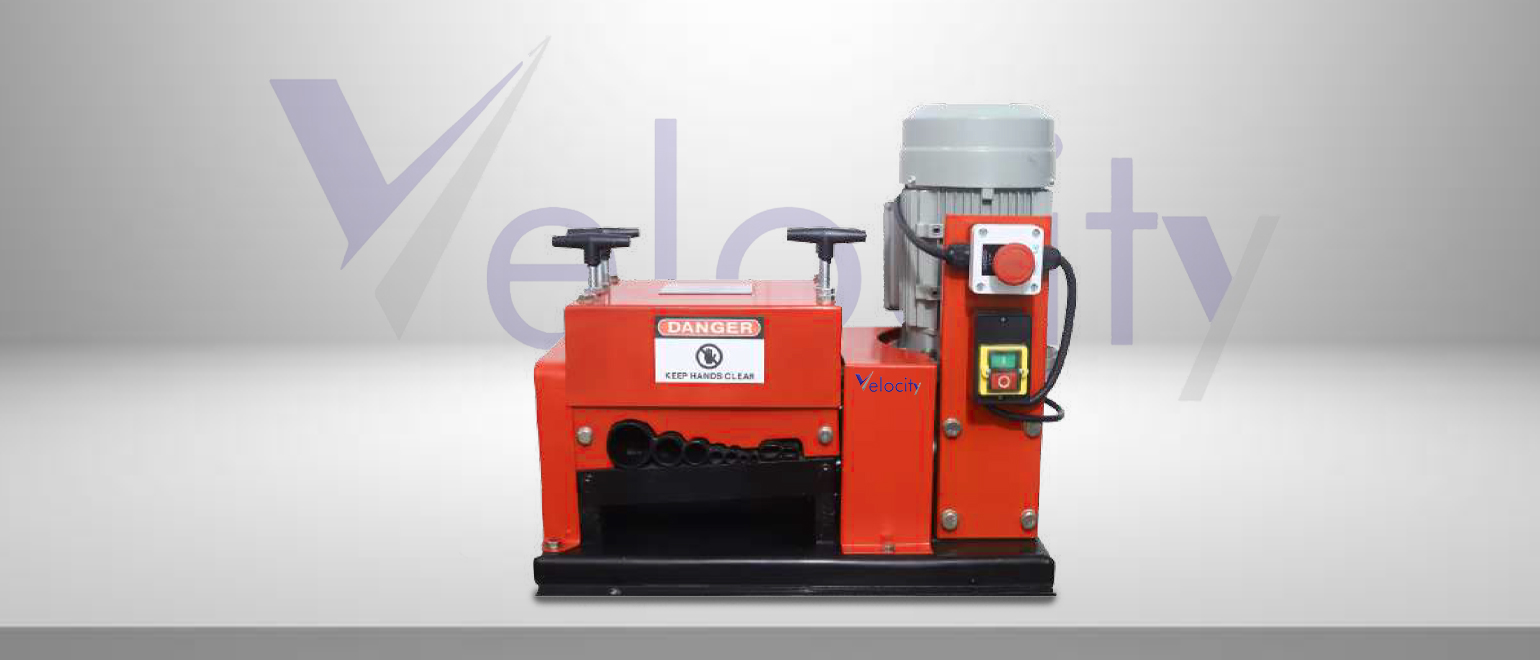

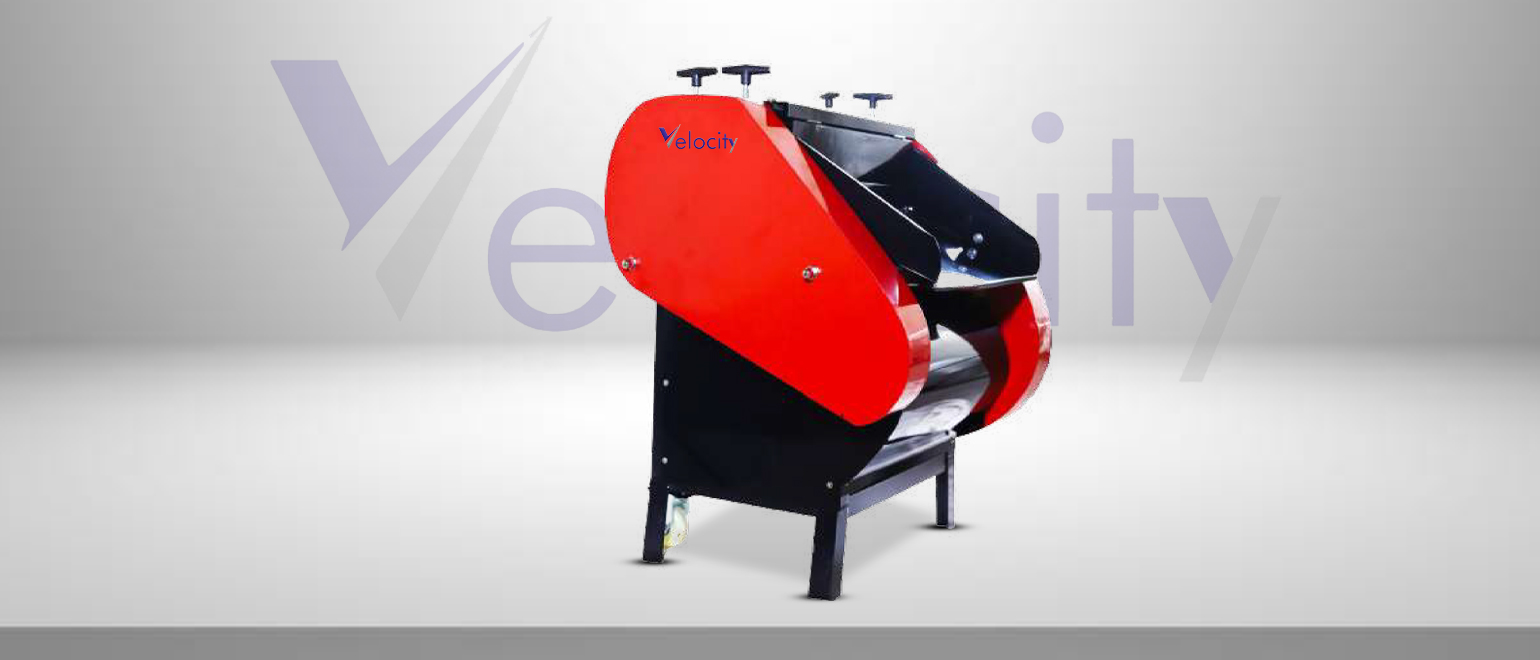

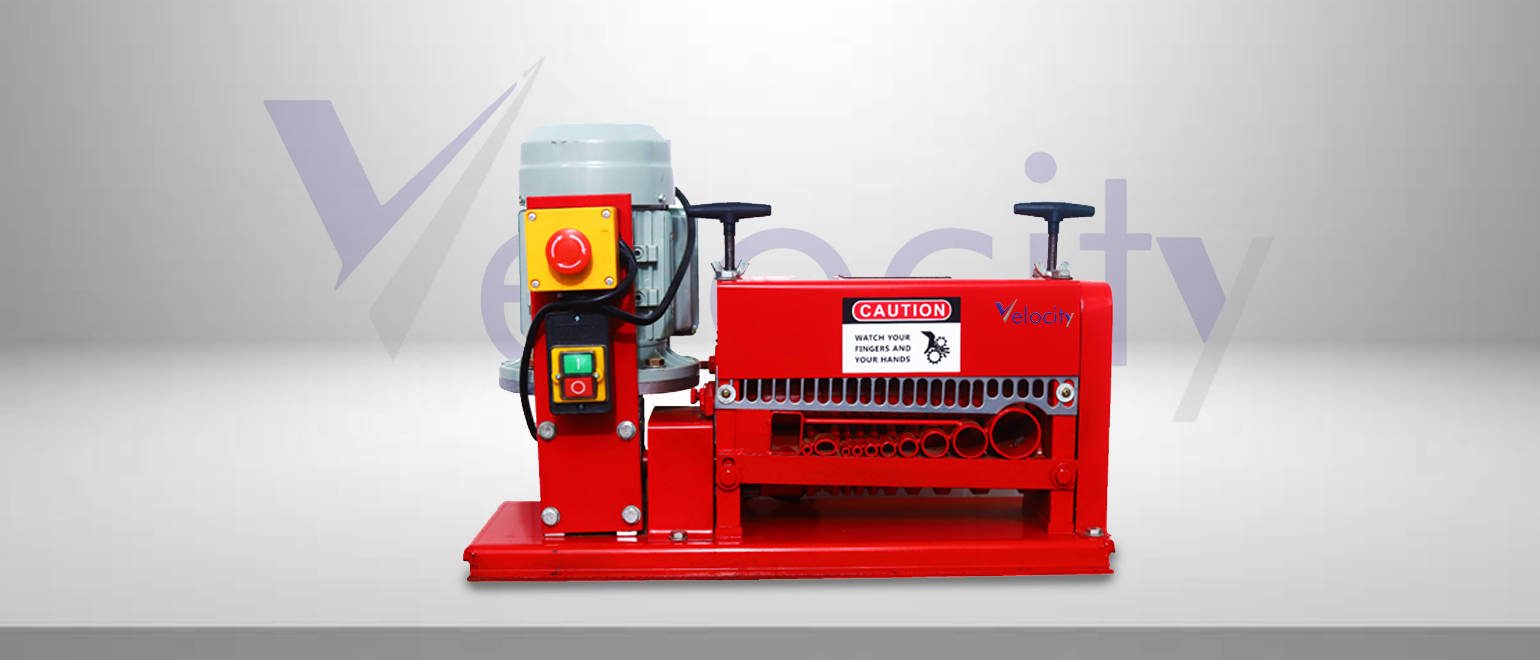

Our scrap cable stripping machine is a specialized device designed to efficiently remove the outer insulation from various types of scrap cables, revealing the valuable metal inside. This process helps in recycling purposes, as it allows for the recovery of copper, aluminum, and other metals from discarded cables, reducing waste and conserving valuable resources.
| Model | Wire Diameter | Power | Blades | Production | Weight |
|---|---|---|---|---|---|
| V-038 | 1-38mm | 0.5HP | Round blade, Single cut | 30-40 KG/HR | 39KG |
| V-038M | 1-38mm | 1HP | Round blade, Single cut | 40-50 KG/HR | 45KG |
| V-007 | 0.75-38mm | 2HP | Round blade, Double cut | 40-50 KG/HR | 55KG |
| V-KOB | 1-45mm | 3HP | Round blade, Double cut | 80-100 KG/HR | 139KG |
| V-KOF | 2-60mm | 4HP | Round blade, Double cut | 100-150 KG/HR | 155KG |
| V-120 | 2-120mm | 4HP | Round blade, Double cut | 150-200 KG/HR | 250KG |
.jpg)
.jpg)

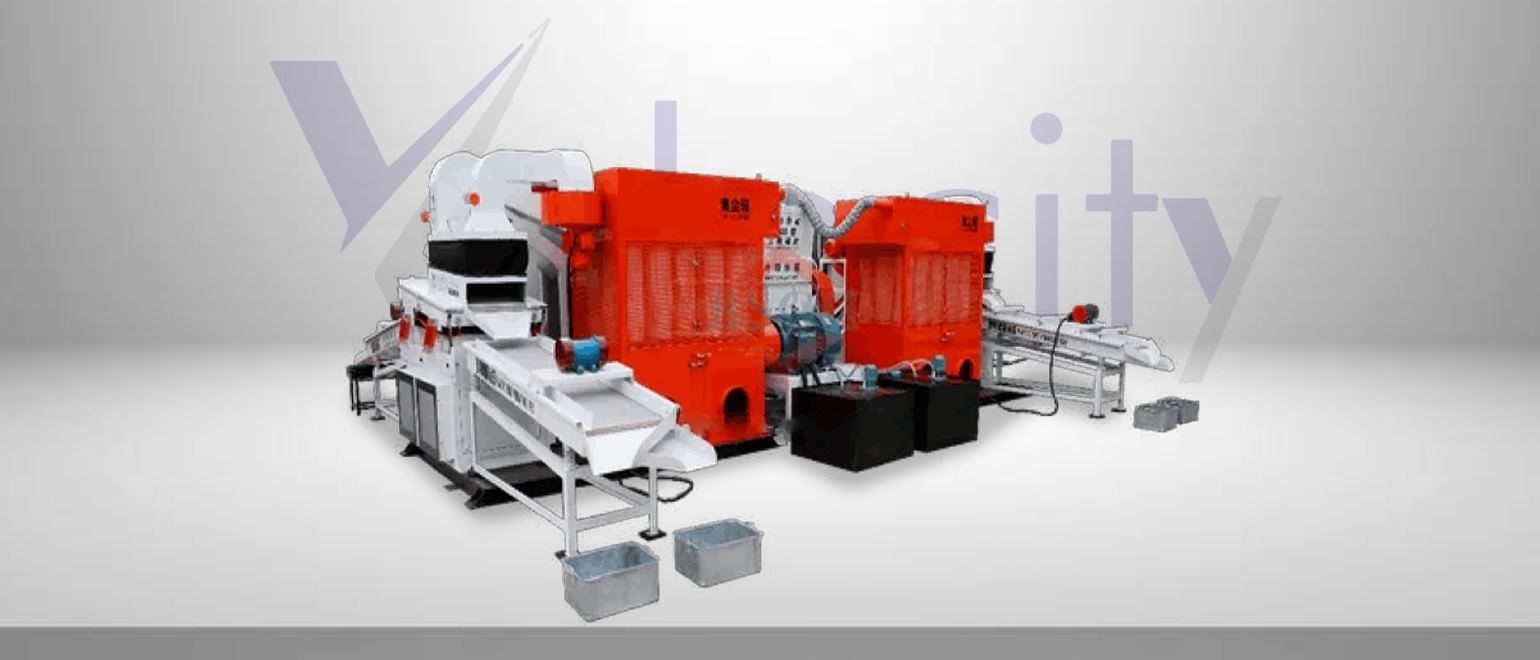

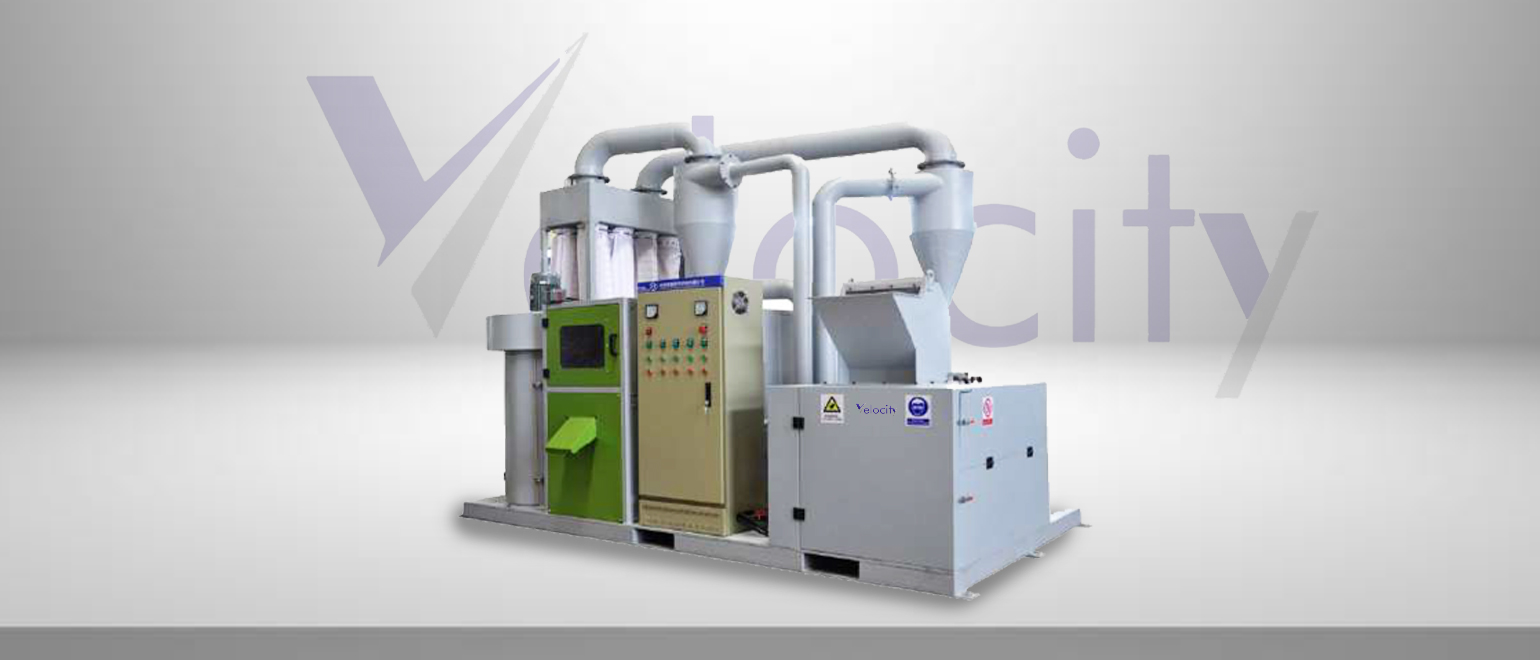

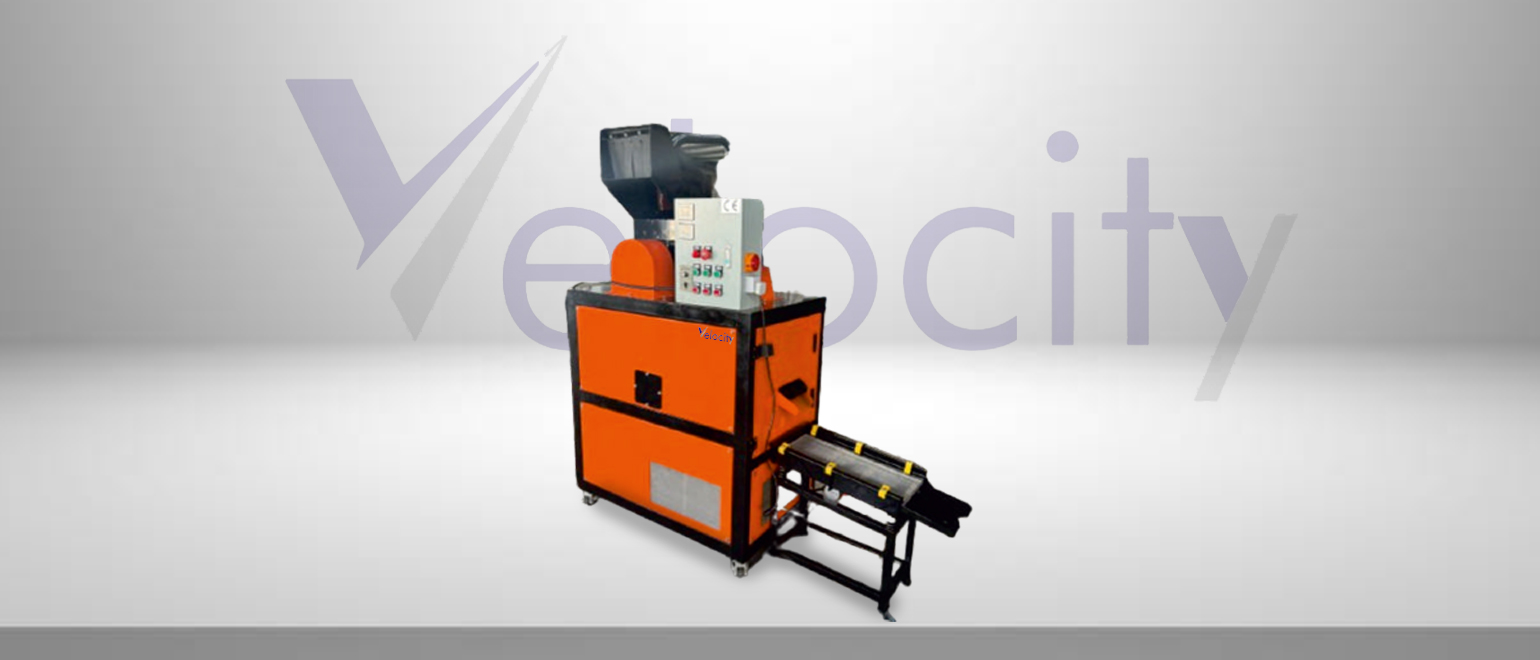

Our granulator plays a crucial role in the recycling industry by efficiently converting waste wires and cables into valuable materials, reducing waste, and conserving resources.
● Robust & powerful copper wire grinder with 5 rotating and 2 stationary blades,
grinding scrap cables to 3mm/4mm/5mm.
● Air flow gravity sorting system to channel the copper particles from the
insulation.
● Significant vibration separator to separate the copper granules from the insulation by
weight.
| Model | Production Capacity | Power | Weight |
|---|---|---|---|
| V-100 | 70-100 Kg/h | 17 KW | 1000 Kg |
| V-300A | 150-250 Kg/h | 19.2 KW | 2700 Kg |
| V-300B | 100-200 Kg/h | 15 KW | 2000 Kg |
| V-500 | 400-500 Kg/h | 60 KW | 9000 Kg |
| V-1000 | 800-1000 Kg/h | 140 KW | 15000 Kg |
| V-3000 | 2500-3000 Kg/h | 516 KW | 45000 Kg |
| V-5000 | 4000-5000 Kg/h | 1012 KW | 75000 Kg |
| V-10000 | 8500-10000 Kg/h | 1989 KW | 100000 Kg |

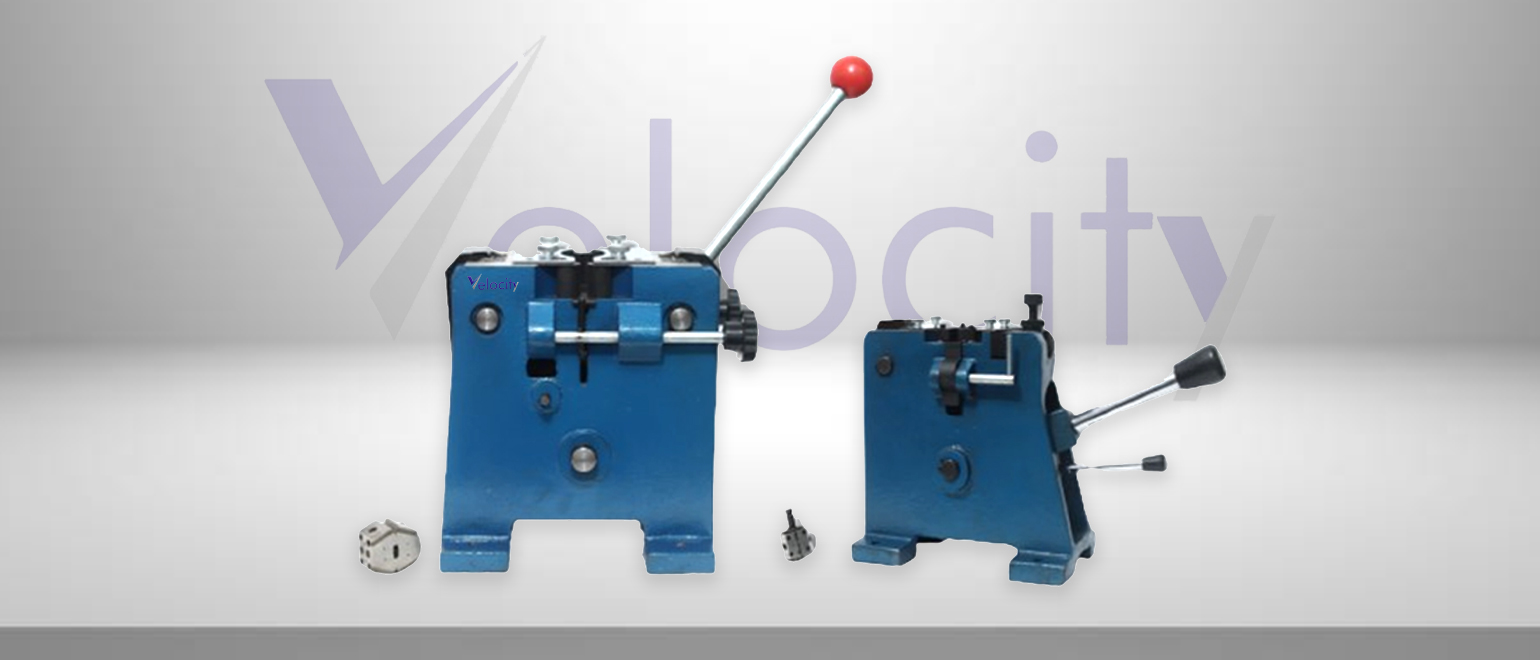

Introducing our state-of-the-art Cold Welding Machine, engineered to deliver precise and reliable cold welding solutions for a variety of industrial applications. Our machine leverages advanced technology to provide strong, high-quality welds without the need for additional heat, making it ideal for materials that are sensitive to thermal distortion.
1. Electrical Connectors
2. Automotive Parts
3. Aerospace Components
4. Metal Fabrication
| Specification | Details |
|---|---|
| Model | CW-2024 |
| Welding Capacity | Up to 5 mm thickness |
| Voltage | 220V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 1.5 kW |
| Welding Speed | Adjustable, up to 10 m/min |
| Control Type | Digital Interface |
| Cooling System | Air-cooled |
| Weight | 120 kg |
| Dimensions (LxWxH) | 900 x 600 x 700 mm |
| Material Compatibility | Aluminum, Copper, Steel, Brass |
| Safety Features | Overheat Protection, Emergency Stop |
| Certification | CE, ISO 9001 |
